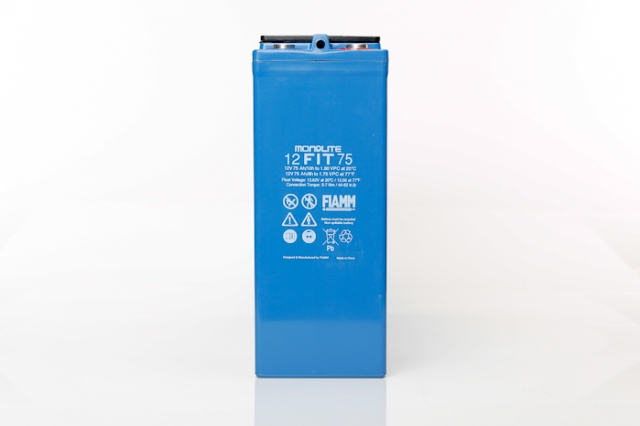

The Fiamm 12FIT75 valve regulated lead acid battery offers the advantages of absorptive glass mat (AGM) technology with the added benefits of accessible front terminals.

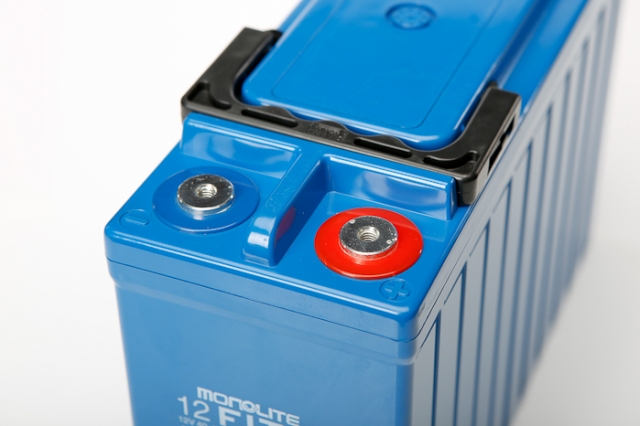

The front terminal design on all FIT batteries helps to reduce installation time and simplifies ongoing maintenance, this product is perfect for telecommunication equipment, uninterruptible power supplies (UPS) and many other standby applications where space is limited and functionality a must. The front access terminals are fully insulated by terminal covers thus ensuring electrical safety and the terminal covers have a specially designed probe hole allowing safe and easy voltage readings to be taken. Lifting handles are situated on each end of the battery to provide further ease on installation.

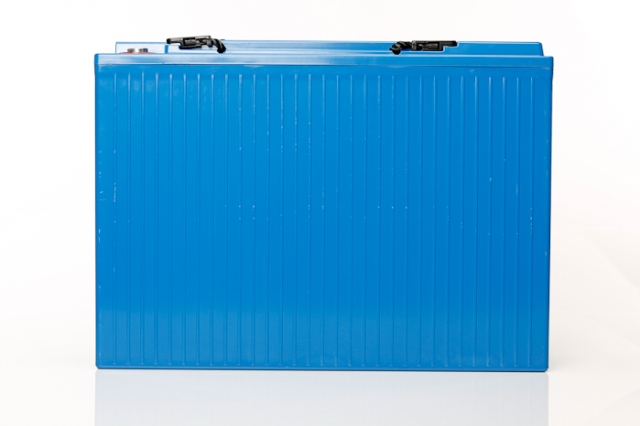

Compact design minimizes overall footprint and facilitates a more compact battery layout in both cabinets and on racks.
|BROCHURE||FIAMM FIT BATTERIES|
|Design Life||10 year design life (Eurobat Guide - 10-12 years)|
|Applicable Standards||IEC 60896 Part 21-22, BS6290 Part 4|
|Separators||Microporous glass mats|
|Terminals||Threaded terminals provide for high conductivity, minimum installation time, and maximum torque retention|
|Flame Arrestors||Expel excess gas while preventing any errant spark of flame from entering the battery|
|Handles||All sizes have handles for ease of use when installing and removing batteries|
|Safety Valves||Operate at low internal pressure|
|Connections||The terminals allow for front, top or side connections depending on the space constraints of the installation|
|MSDS (Material Safety Data Sheet)||click here|
|Constant Power Discharge 20°C||click here|
|Constant Power Discharge 25°C||click here|
|Constant Current Discharge 20°C||click here|
|Constant Current Discharge 25°C||click here|
